4*2 Mini/ Tipper / Dumper / Site Dumpers / Cargo/ Dump Trucks with FAW Engine

Product Categories
Shandong Heavy Industry Machinery Co.,Ltd.
Contact Now

4*2 Mini/ Tipper / Dumper / Site Dumpers / Cargo/ Dump Trucks with FAW Engine

  • 1
  • 2
  • 3

Brand Name : FAW

Model Number : SSF3042DDP53-1

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 Piece

Price : Negotiation

Payment Terms : L/C, T/T, D/A, Western Union

Supply Ability : 5000pcs/year

Delivery Time : Full payment 15-20 work days

Packaging Details : Naked, frame, container

Engine : 4DW93-84E5

Emission standard : Euro5

Displacement : 2.54L

Wheel base : 3000mm

Cargo Box Size : 3400×1870×(490+200)mm

Overall Dimension : 5680×2030×2440mm

Contact Now

4*2 Mini/ Tipper/Dumper/Site Dumpers/Cargo/ Dump Trucks with FAW Engine

Advantage:

1. Strong power,China famous brand engine-Weichai or FAW Engine
2. Comfortable driving: One&half rows sleep cabin, with air conditioning(cooling&heating), power steering
3. Thicken and heighten cargo body,large capacity and more durable
4. Safety: ABS, air brake


Product Parameter

Description FC1800 1.5 Cabin Dump Truck
Item FENG CHI 1800
Model SSF3042DDP53-1
Cabin ONE AND HALF ROWS CABIN

whole
vehicle
main
dimension

 Overall dimensions (L*W*H)mm 5680×2030×2440
Dimensions of cargo body (L*W*H)mm 3400×1870×(490+200)
Driving type 4×2
Wheel base 3000
Wheel track(F/R)mm 1170/1510
Min ground clearance (mm) 190
Weight
data		 Curb weight (kg) 3020
Rated payload(kg) 4000
Person in cab (persons) 3
whole
vehicle
main
performance		 Max.speed(km/h) 90
Max.slope of climb(%) 25
Min.turning radius (m) 7.5
Engine Engine model 4DW93-84E5
Engine type Vertical, water-cooled, four-stroke,
turbocharged and inter cooled
Fuel injection equipment Common-rail with EDC+DPF
Emission standard Euro5
Displacement (L) 2.54
Rated power (KW) 64
Max torque (N.m/rpm) 220N.M/ 1900-2100 r/min
Steering gear type Power steering
Brake system Service brake and boosting type Air brake
Parking brake Central drum brake
Auxiliary brake Air brake

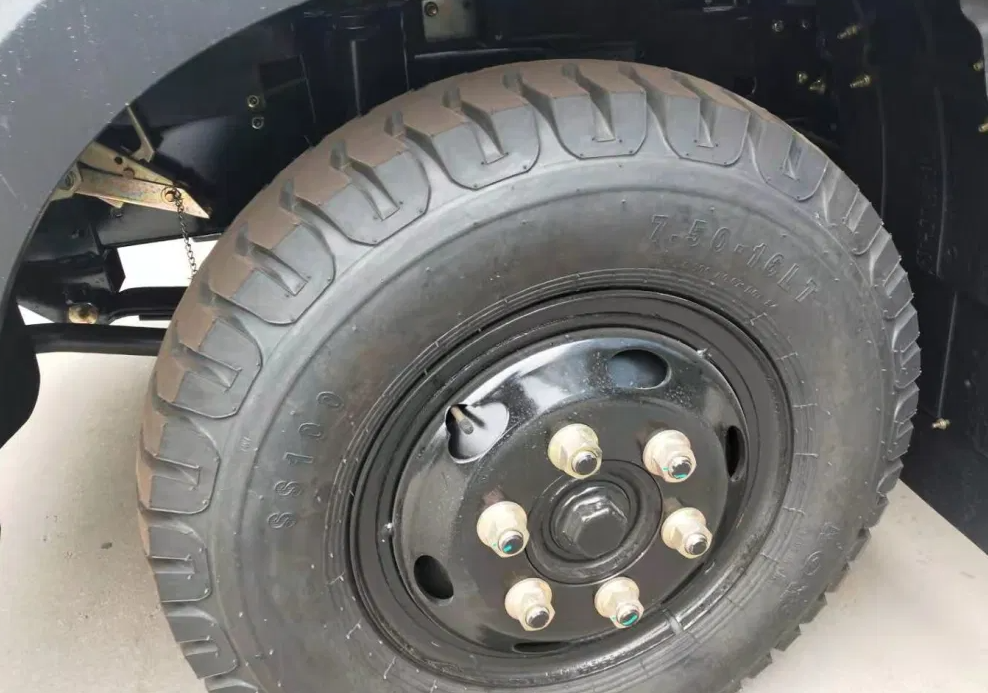

Wheels and tyre size 7.50-16/7.50-16
Electric system Rated voltage 24V
Battery 100Ah

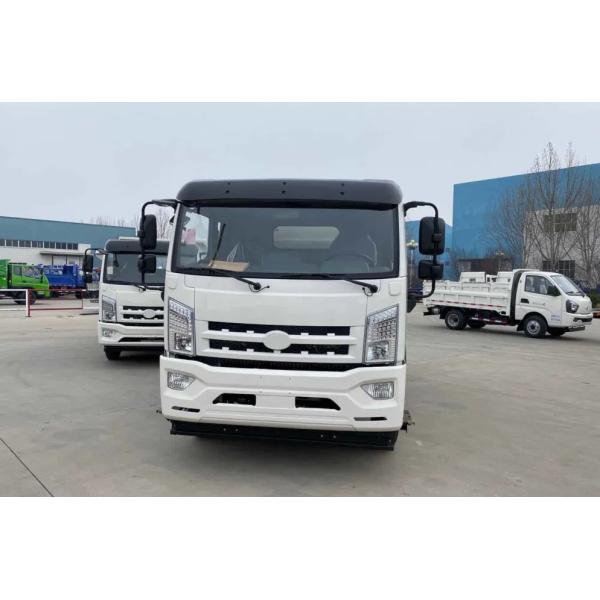

Detailed Photos
4*2 Mini/ Tipper / Dumper / Site Dumpers / Cargo/ Dump Trucks with FAW Engine
4*2 Mini/ Tipper / Dumper / Site Dumpers / Cargo/ Dump Trucks with FAW Engine
4*2 Mini/ Tipper / Dumper / Site Dumpers / Cargo/ Dump Trucks with FAW Engine
4*2 Mini/ Tipper / Dumper / Site Dumpers / Cargo/ Dump Trucks with FAW Engine
4*2 Mini/ Tipper / Dumper / Site Dumpers / Cargo/ Dump Trucks with FAW Engine
4*2 Mini/ Tipper / Dumper / Site Dumpers / Cargo/ Dump Trucks with FAW Engine
4*2 Mini/ Tipper / Dumper / Site Dumpers / Cargo/ Dump Trucks with FAW Engine
